Description:

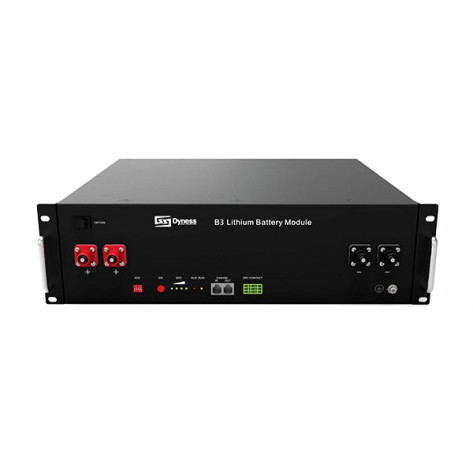

The Dyness 3.6Kw Lithium Battery is widely used in energy storage and back-up power systems. The Dyness 3.6Kw Lithium Battery module is equipped with intelligent BMS system for each battery pack to manage modules effectively. Offers the best energy storage reliability with a longer life span.

Features:

• Natural Cooling with optional heat/fan configuration
• Longer lifetime - 6000 cycles, 20 years of design life
• Large energy capacity
• Wide temperature range
• Modular design - Compact size and lightweight

Specifications:

• Battery Type - LiFePO4
• Nominal Batter Energy - 3.6kWh
• Nominal Capacity - 75Ah
• Nominal Voltage - 48V
• Maximum Continuous Discharge Current - 50A
• Maximum Continuous Charge Current - 50A
• Charging Cut-off Voltage - 54V
• Discharging End-off Voltage - 40.5V
• Recommended C Rate - 0.5C
• Weight - 30kg
• Dimension (W x D x H) - 400 x 360 x 133.5mm
• Charging Temperature Range - 0~50°C
• Discharging Temperature Range: -20 ~ 50°C
• Calendar Life - 6000 Cycles
• Protection Level - IP20
• Configuration -Up to 144kWh total energy, 4 modules parallel at mos
