Description

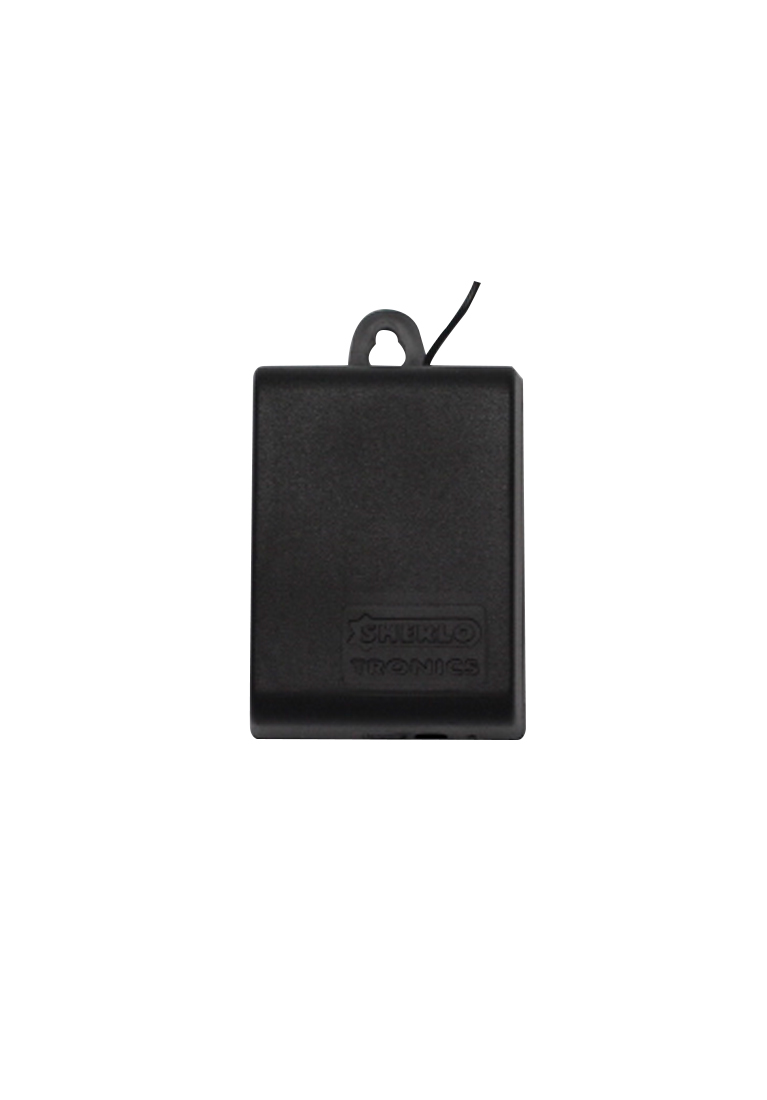

The Sherlotronic RX1-150 receiver is a reliable, tried and tested indoor product supplied in a compact easy to install housing. Suitable applications for a Sherlotronic RX1-150 receiver include:

• Gate & Garage Door Access Control
• Panic Activations
• Arming / Disarming Alarm systems
• Switching On / Off lights
• Switching On / Off Generators

Features

• Code-Hopping Encryption
• Range: 150m (Open air)
• Latch or Momentary
• Selectable Momentary times: 1 Sec; 3Sec; 1min; 3min
• Buzzer tone
• Crystal Controlled +/- 100KHz
• Frequencies: 403MHz / 433MHz
• 12 - 24V AC/DC input

Specifications

• Encryption: Code-Hopping
• Frequency: 403MHz / 433 MHz
• Memory Capacity: RX1-150 80 Remotes
• Voltage Range: 9.8V to 26V AC/DC
• Current draw: 15mA
• Operating Temp: -5°C to 60°C
• Warranty: 24 Months
